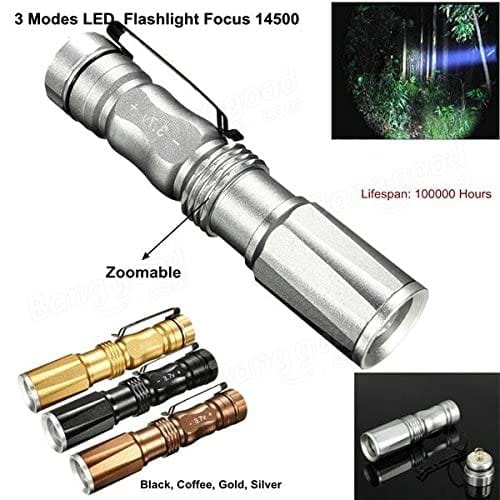

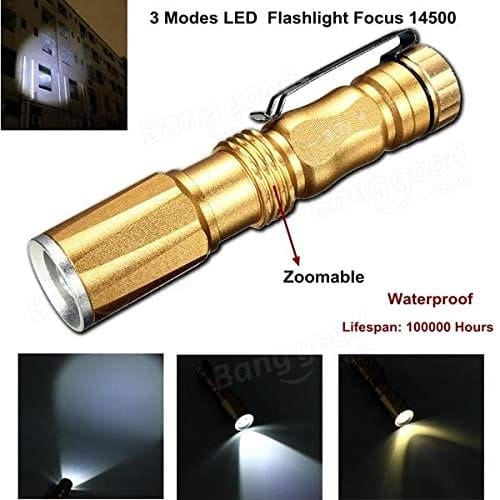

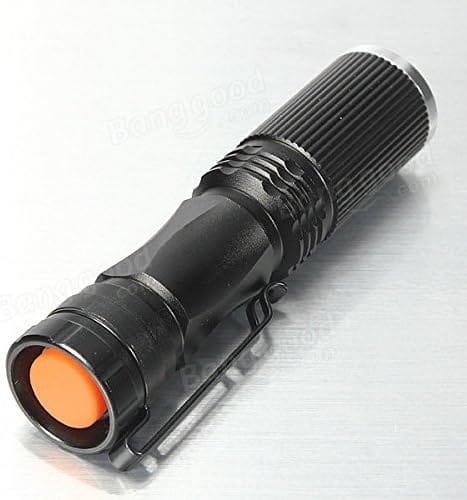

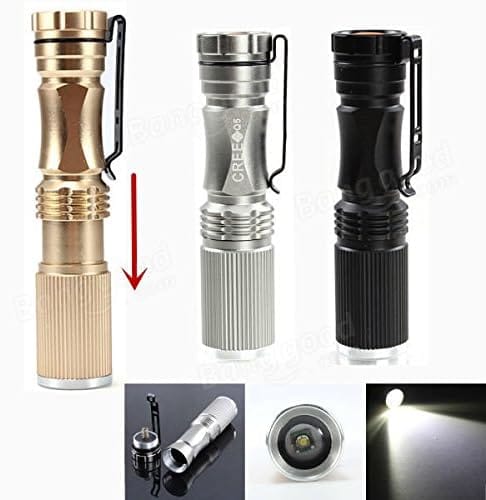

Specification:
| Product name: | Meco XPE-Q5 Mini LED Flashlight |
| Emitter Brand/Type: | Q5 LED |
| Color BIN: | white |
| Material: | Aluminum Alloy |
| Max Output: | 600 lumens |
| Maximum Range: | About 100meter |
| Power: | 7W |
| Lens: | Convex Lens |
| Zoomable: | yes |
| Battery Configurations: | 1.2v AA/14500 battery(not included) |
| Switch Type: | clicky(on/off) |
| Mode: | On-OFF |
| Switch: | Tail cap switch |
| Color: | Black/Silver/Golden |
| Weight: | 33g(net weight) |
| Size: | 90 x 20 x 20 mm(L x Head Dia. x Body Dia.) |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| color | Black, Golden, Silver |
Only logged in customers who have purchased this product may leave a review.
Module Interface: 1, DC +: then the power supply positive (voltage according to the relay requirements, with 5V.12V and 24V choice); 2, DC-: connected to the power supply negative; 3, IN1: 1 signal trigger side, you can set the high or low level control relay pull; 1, NO1: 1 relay normally open interface; 2, COM1: 1 relay common interface; 3, NC1: 1 relay normally closed interface; Technical Parameters: Relay version: 24V; Quiescent current: 5mA; Maximum current: 50mA; Trigger current: 2-4mA; Trigger voltage (low level): 0-8V; Trigger voltage (high level): 8.5-24V; High and low trigger select side: 1.S1 for 1-Channel relay high and low trigger selection; 3.COM and LOW connection, the corresponding relay is low-level trigger, COM and HIGH-side connection is high when the trigger.
